Draw Frame Roller

DRAW FRAME M/C. MODELS
RSB-1, 2, 51, 52, 851, 951 SB-2, 10, 20, 51, 52
D-10, D20, D22, D24, D30, D40, D40C, D41, D45, D221, D50
TD 02, TD 03, TD 07, TD 08, TD 09
D 05, D 06, LD2, (Old Model) LD2 (New Model), LDA/Z D02-S-(3 BRG), LDF-3
DX-400, DX-500, DX-600, DYH-500, DX-7LT, DX-8LT, DFK-2CD
CHINESE-FA-316, FA-306, DZ-2C

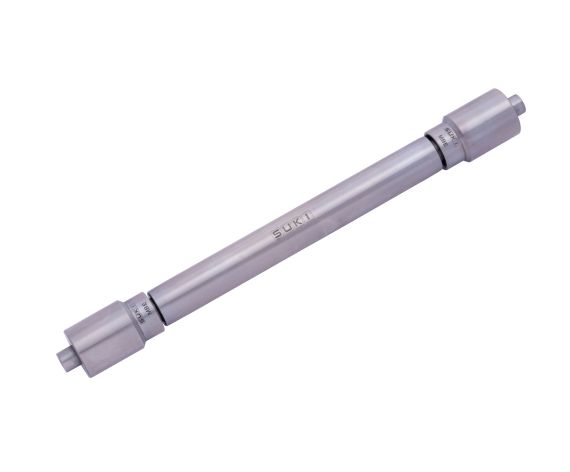

TD - 03/TD 08 (Greasing Type)
BRD 23 x 34 X 185

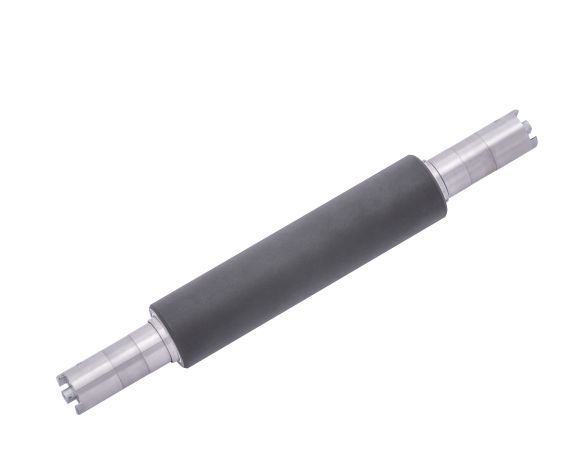

D30 / D-40 / D-45 / D-221
BRD 26 X 38 X 160

RSB 851 / 951
BRD 26 X 38 X 150

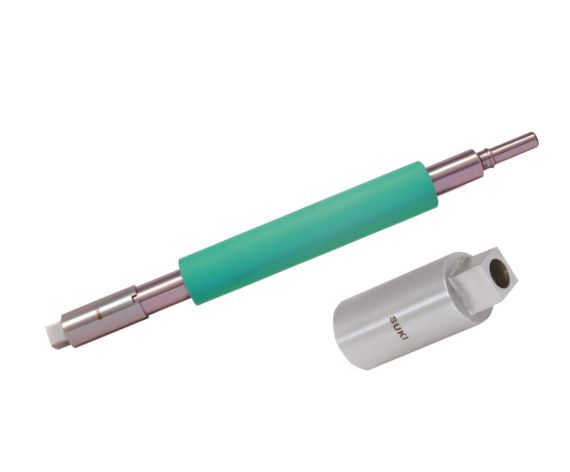

DX 600
BRD 24 x 34 x 180

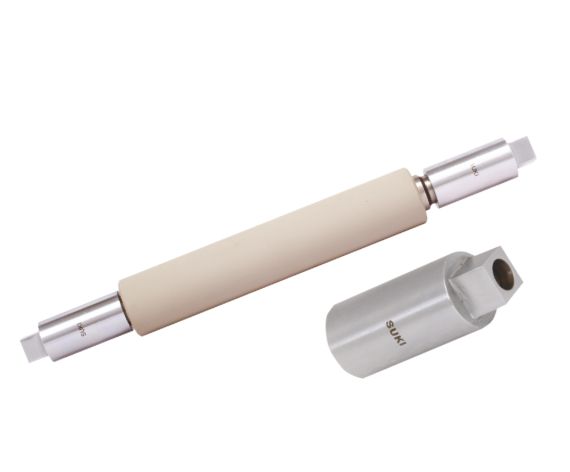

DX 500
BRD 22 x 34 x 180

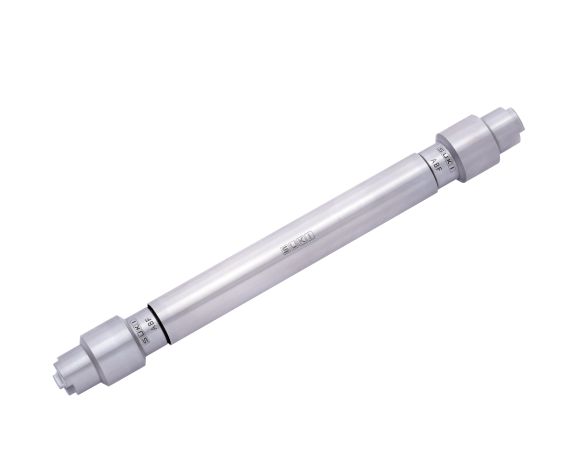

D26 / D50 (Greasing Type)
BRD 26 x 38 x 160

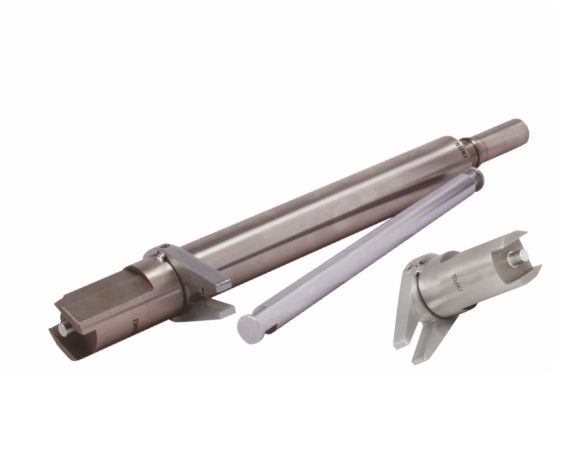

LD - 2 OLD MODEL
BRD 26 x 38 x 160

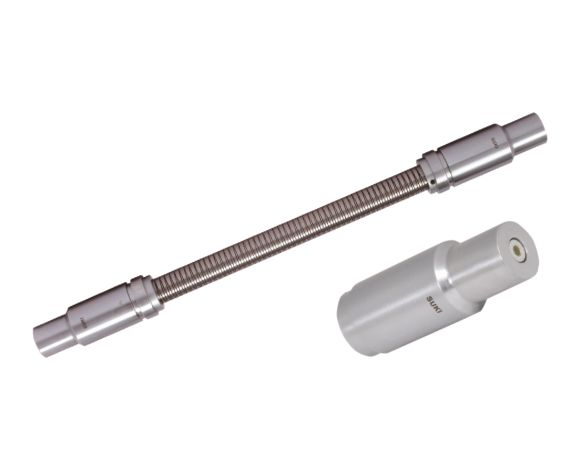

DO2S (3 Bearing)
BRD 20 x 40 x 210

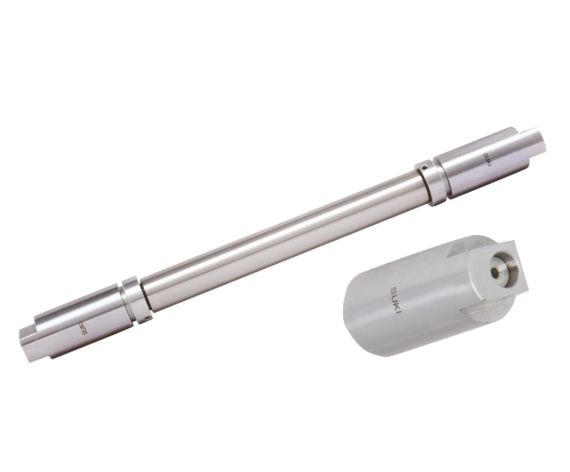

FA 306
BRD 19 x 33 x 180, 22 X 97 x 180

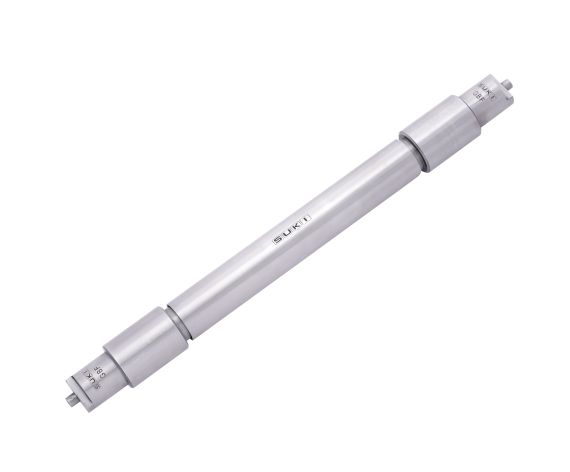

LDF 3 / LDB 3 (Greasing Type)
BRD 26 X 38 x 150

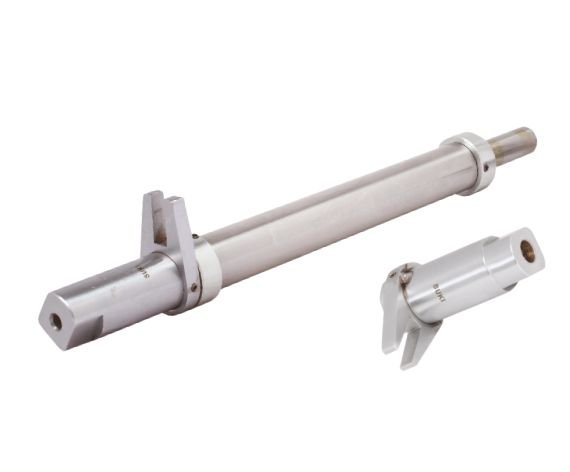

LR DO 6
BRD 25.3/26 X 39 x 186

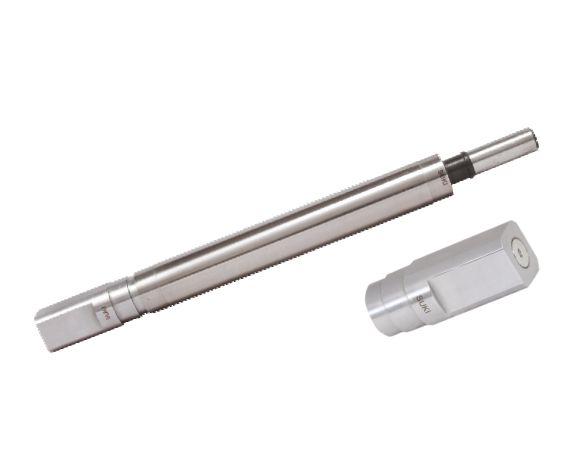

DX 8 LT
BRD 26 X 37 x 160, 23 X 34 x 160

COTS SIZE FOR DRAW FRAME ROLLERS - PREPARATORY

Draw Frame Roller	COT Size	Glue On Cot		Alu. Core Cot
Draw Frame Roller	COT Size	Precitex	Inarco	Accotex	Precitex	Inarco
RSB 851, RSB 951, RSB 1, RSB 2, SB 2, SB 51 & SB 52	D26 × D38 × 150			Black - 70 Green - 80 Grey - 83	Black - 78 Pink - 83	Blue - 85 Black - 78 Grey - 83
Vouk SH 802 - Dia.30 Vouk SH 802 - Dia.23.1	D30 × D45 × 175 D23.1 × D34/38 × 175	Grey - 83 Grey - 83		Grey - 83 Grey - 83	Grey - 83 Grey - 83	Grey - 83 Grey - 83
Vouk VS - 4A - Dia.30 Vouk VS - 4A - Dia.23.1	D30 × D45 × 210 D23.1 × D38 × 220			Grey - 83 Grey - 83	Grey - 83 Grey - 83	Grey - 83
Cherry/Toyoda-USC 600 DX 600	D23 × D34 × 180			Black - 70 Grey - 83	Grey - 83	Grey - 83
Cherry Harra DX 500	D22 × D34 × 180			Grey - 83		Grey - 83
RSB - D30, D35, D40, D45 & D221	D26 × D38 × 160			Black - 70 Green - 80 Grey - 83	Grey - 83 Black - 78	Grey - 83 Black - 78 Blue - 85
Texmaco How DFK-2CD	D24 × D34 × 180		Grey - 83	D.Brown - 70 Green - 80 Grey - 83	Grey - 83
LR DO/2S or TD 302	D20 × D40 × 210	Grey - 83	Blue - 85	Grey - 83	L - pink - 83
LR DO/6	D26 x D39 x 186	Grey - 83	Grey - 83	Grey - 83
Padmatex 720 (4 over 3)	D23 x D34 x 160	Grey - 83	Grey - 83 Blue-85	Grey - 83
